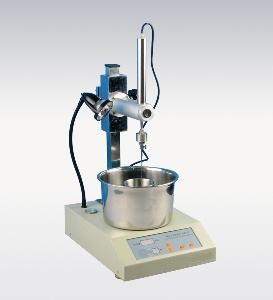

Automatic Penetrometer

Testing the hardness of bitumen.


  • LED Spot light, control circuit inside base, time display and penetration display windows and function key on display panel
  • Needle rod release
  • Fine Adjustment knob

Time Setting:                                                 5 – 30 seconds

Max needle penetration:                       500

Displace measure range:                       0 – 30mm

Measuring accuracy:                               +/- 1% (0-10mm)

                                                                                 +/- 10% (10.1 – 30mm)

Standard Needle:                                        2.5+/-0.05g

Sample Vessel:                                             dia. 70mm

Power supply:                                              220V AC 50Hz
